UHF wireless stereo in-ear monitoring system

  • Description
  • Specifications
  • Download

10 non-interference frequency groups with 25MHz bandwidth

* 96 frequency are available for operation

* Professional dynamic compression extension and dynamic limit technology

* Can withstand up to + 6dBu large dynamic audio signal inputs without distortion

* ≥ 60dB stereo crosstalk

* OLED display

* Working Distance≥ 50 meters

* 8 transmitters at the same time can work in a same frequency range without interference

* Digital pilot technology

* Lightweight aluminum handheld and body pack transmitter

* Infrare data transmission

* In-ear listening headset

* Detachable antenna

* Φ6.35/XLR integrated audio input interface for transmitter

* IMD process appearance

P1 IEM10R

Frequency Range : 650-675MHz

Optional Frequency : 96

Frequency Bandwidth : 50MHz

RF Sensitivity : <-92dBm

Frequency Response : 45HZ~15KHz(±3dB)

S/N Ratio : >80dB (A)

T.H.D. :<1% to 1KHz

Gain Adjustment Range : -81~0dB

Power Supply : 2x1.5 V(AA)

Battery Life : >6H

Dimensions : 64(L)*22(W)*85(H)mm

Weight : 115g

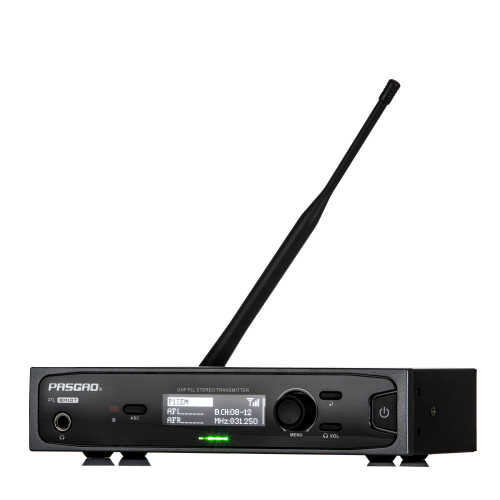

P1 IEM10T

Frequency Range : 650-675MHz

Optional Frequencies : 96

Output Power : 2/10/30mW

Spurious : > 50dBc

Frequency Response: 45Hz~15KHz(±3dB)

S/N Ratio : >80dB (A)

T.H.D. :<1% to 1KHz

Gain Adjustment Range : 0~100dB

Power Supply : 12V DC/500mA

Battery Life : >6H

Dimensions : 95(W)*212(L)*44(H)mm

Weight : 630g
