Portable camera system


The PR-51 is a portable camera system with 16 optional working channels. It can handle a variety of radio wave complex situations, and the rechargeable design makes it more convenient for users.


  • Description
  • Specifications
  • Download

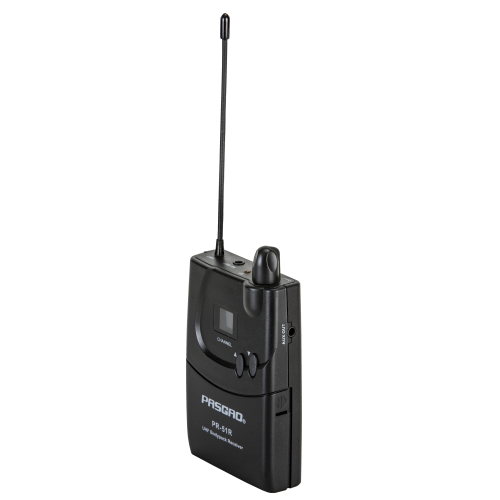

PR-51R

• Backlit LED displays working channel
• Up to 16 channels can be used simultaneously
• Receiver has IP type audio output
• Integrated with line in/out design and rechargeable
• Professional dynamic companding technique and low noise component to ensure the good frequency response and S/N ratio
• Portable system with light and small size design


PR-51T

• Backlit LED displays working channel

• Rechargeable circuit

• Portable system with light and small size design


PAH-1100

• All-metal die-cast structure ensures high mechanical strength
• Modularized microphone head separate design for flexible choice and easy replacement
• LCD shows add., group, channel, battery volume and lock status

• Microphone sensitivity adjust

• Infrared data synchronization



PR-51R

Frequency Range: 584 ~ 865MHz
Oscillation Pattern: PLL
Working Range: 60M in ideal conditions
Modulation: FM
Pilot Tone: 32.768KHz
Optional Frequency:16
System Compatibility: 8pcs
Audio Frequency Range: 60Hz ~ 12KHz (±3dB)
Dynamic Range: > 102dB(A)
T.H.D.: < 0.6%
S/N Ratio: > 98dB (A)
RF Sensitivity: < -92dBm for 30dB S/N Ratio
Image Rejection: > 50dB
Output Connectors: Φ3.5mm JACK
Audio Output Level: +6 dBV
Output Impedance: 600Ω
Display: LED

Power Requirements: 1.5V× 2 (AA)

Battery Life: > 8H / 1300mAH

Operating Temperature Range: 0-50 °C

Dimensions: 98(H)*65(L)*24(W)mm

Weight: 90g


PR-51T

Gain Adjustable Rangee: -10/0/10dB
Input Impedance: 5KΩ
Output Power : 20mW
Spurious Rejection > 45dB
Display :LED
Power Requirements:  1.5V*2(AA)

Battery Life: > 8H/ 1300mAH

Dimensions:98(H)*65(L)*24(W)mm

Weight: 90g


PAH-1100

Gain  Adjustable range: -∞ ~ +6dB
Input  Impedance: 5KΩ
Output Power : 10mW
Spurious Rejection : Harmonic Rejection> 45dB
Display : LCD
Power Requirements:  1.5V*2(AA)
Battery Life: > 8H/ 1300mAH
Dimensions: 250(L)*50(Φ)mm
Weight: 300g
