PR-50
PR-50

UHF SIngles channel portable camera system


This is a UHF single channel portable camera system used in all kinds of camcorders, which allows photographers to eliminate the tie of the signal line during recording, and make the distance and positioning of video and audio more closely combined to achieve the original sound reproduction effect. The product is suitable for all kinds of news interviews, on-site explanations, outdoor photography and other occasions.

  • Description
  • Specifications
  • Download
• Multiple frequencies are available. 8 transmitters can operate simultaneously in the samechannel and do not interfere
• Balanced audio output design within the receiver
• Field strength and noise measure, double squelch quantum adjustment control, efficiently improve the preventing of noise interference in the environment
• Professional dynamic compressing expand and dynamic limited technology, the system
can endure the super dynamic input avoid distortion

• Low battery indication

• Infrared data synchronization

• Microphone sensitivity adjust

• All aluminum alloy tube design

• Two-speed power switch selection

• Low battery indication

• 3 optional input gain adjustment

• Infrared data synchronization


RF Carrier Frequency Range: 584 ~ 937.5MHz
Oscillation Pattern: PLL
Working Distance: 60M in ideal conditions
Modulation: FM
Pilot Tone: 32.768KHz
Max Channel Numbe:1
System Compatibility: 8pcs
Audio Frequency Range: 60Hz ~ 12KHz (±3dB)
Dynamic Range: > 102dB(A)
System Distortion: THD< 0.6%
S/N Ratio: > 98dB (A)
RF Sensitivity: < -92dBm for 30dB S/N Ratio
Image Rejection: > 50dB
Output Connectors: Φ3.5mm JACK
Audio Output Level: +6 dBV
Output Impedance: 600Ω
Display: LED

Power Requirements: 1.5V× 2 (AA)

Battery Life: > 8 hours / 1300mAH

Operating Temperature Range: 0-50 °C

Overall Dimensions: 98*65*24mm

Weight: 90g
Gain Adjustable Rangee: -∞ ~ +3dB
Input Impedance: 5KΩ
RF Power Output: 20mW
Spurious Rejection > 45dB
Display :LED
Power Requirements:  1.5V*2(AA)

Battery Life: > 8 hours / 1300mAH

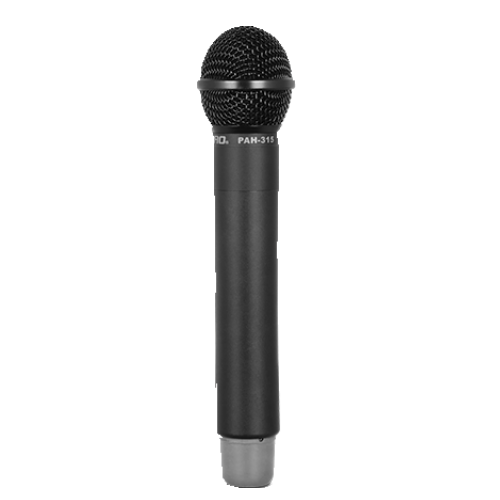

Overall Dimensions:250*54mm

Weight: 270g
Gain  Adjustable range: -10/0/10dB
Input  Impedance: 5KΩ
RF Power Output: 20mW
Spurious Rejection :> 45dB
Display : LCD
Power Requirements:  1.5V*2(AA)
Battery Life: > 8 hours / 1300mAH
Overall Dimensions: 98*65*24mm
Weight: 90g
