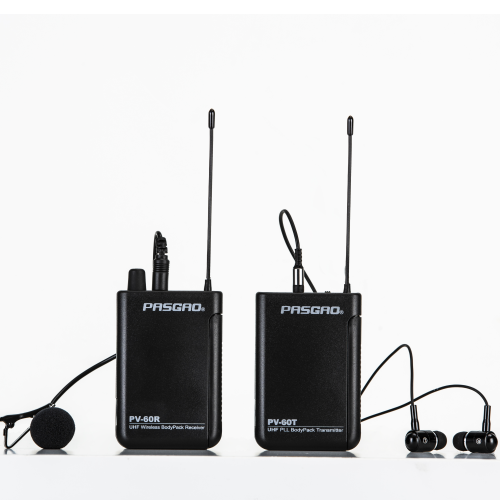

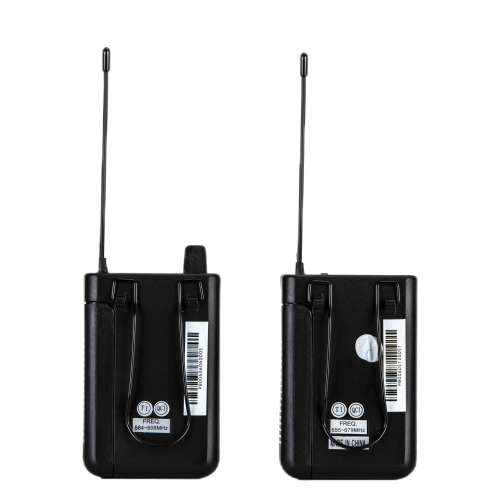

PV-60 UHF sixteen channel wireless navigation system


Ultra-small receivers and transmitters are designed for use in specific applications, allowing users to integrate well into the display environment without damaging the display atmosphere. This product is widely used in museums, planning halls, science museums, art galleries, libraries, corporate exhibition halls, international exhibitions, factory visits, outdoor sightseeing and other occasions.

  • Description
  • Specifications
  • Download
• Multiple frequencies are available. 8 transmitters can operate simultaneously in the samechannel and do not interfere
• Field strength and noise measure, double squelch quantum adjustment control, efficiently improve the preventing of noise interference in the environment                                   • Built-in high-sensitivity microphone for all frequency response acquisition that the human ear can perceive
• Mini size and light weight design of the receiver, it is convenient to bring with		• Multiple frequencies are available. 8 transmitters can operate simultaneously in the samechannel and do not interfere
• Field strength and noise measure, double squelch quantum adjustment control, efficiently improve the preventing of noise interference in the environment                                   • Built-in high-sensitivity microphone for all frequency response acquisition that the human ear can perceive
• Mini size and light weight design of the receiver, it is convenient to bring with


Input Impedance: 5KΩ
RF Output Power: 20mW
Spurious Rejection : > 50dB
Display : LED
Power Requirements: 1.5V× 2 (AA)
Battery Life: > 8h/1300mAH
Overall Dimensions:82*55*20mm
Weight: 60g
RF Carrier Frequency Range: 584 ~ 937.5MHz
Oscillation Pattern: PLL
Working Distance: 60M in ideal conditions
Modulation: FM
Max Channel Numbe:16
System Compatibility: 8pcs
Audio Frequency Range: 60Hz ~ 15KHz (±3dB)
Dynamic Range: > 102dB(A)
System Distortion: THD< 0.6%
S/N Ratio: > 98dB (A)
RF Sensitivity: < -92dBm for 30dB S/N Ratio
Image Rejection: > 50dB
Output Connectors: Φ3.5mm JACK
Audio Output Level: 65mW × 2
Output Impedance: 32Ω
Display: LED
Power Requirements: 1.5V× 2(AA)                                     Battery Life: > 7 hours / 1300mAH
Operating Temperature Range: 0-50 °C                                     Overall Dimensions::82*55*20mm
Weight: 60g
