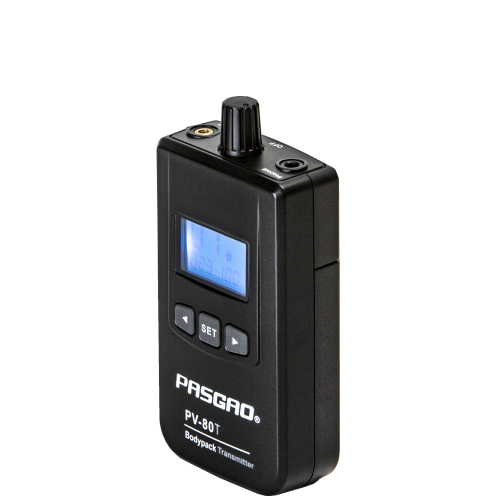

 PV-80 UHF sixteen channel wireless navigation system


This is a UHF16-channel wireless navigation system designed for long-distance applications. It has a receiving distance of up to 250 meters and can be used in various sports training, venue visits, outdoor sightseeing and other occasions.

  • Description
  • Specifications
  • Download
• Small size and lightweight design.
• Effective use distance of 250 meters.
• Powered by a high-energy lithium-ion battery for up to 8 hours of use.
• Small USB charging port design for easy charging at any time.
•It can be used superimposed by 6 receivers and does not interfere with each other. It is sufficient to deal with various complex viewing occasions.                                                     • Small size and lightweight design.
• Effective use distance of 250 meters.
• Powered by a high-energy lithium-ion battery for up to 8 hours of use.
• Small USB charging port design for easy charging at any time.


Input Impedance: 5KΩ
RF Output Power: 50mW
Spurious Rejection : > 50dB
Pilot Tone: 30KHz
Display : LCD
Power Requirements: 3.7V/2400mA lithium battery
Battery Life: > 12 hours
Overall Dimensions: 98*52*24mm
Weight: 80g
RF Carrier Frequency Range: 823 ~ 865MHz
Oscillation Pattern : PLL
Working Distance: 250M in ideal conditions
Modulation: FM
Pilot Tone: 30KHz
Max Channel Numbe: 24
System Compatibility: 6 pcs
Audio Frequency Range: 60Hz ~ 15KHz (±3dB)
Dynamic Range: > 95dB
System Distortion : THD < 1%
S/N Ratio: > 85dB(A)
Display: LCD
Power Requirements: 3.7V/2400mA lithium battery
Battery Life: > 12 hours                                                                 Overall Dimensions: 98*52*24mm
Weight: 80g
