Dual-channel true diversity wireless microphone system


This system utilizes a newly developed technology coupled with excellent sound quality that accurately captures every detail. It has a crystal-clear sound quality and powerful user-friendly control interface. All the data can be operated and monitored for easy operation.Ultra-wide 42MHz bandwidth and automatic frequency selection ensure consistent operation with no set up hassles. Each frequency band supports up to 20 channels working simultaneously without interference. With powerful features, the system is suitable for any concert or other demanding occasions.PAW-5000 is single channel system, while PAW-5200 is a dual-channel system. Each can be equipped with our PAH-1300 and PBT-1300.

  • Description
  • Specifications
  • Download

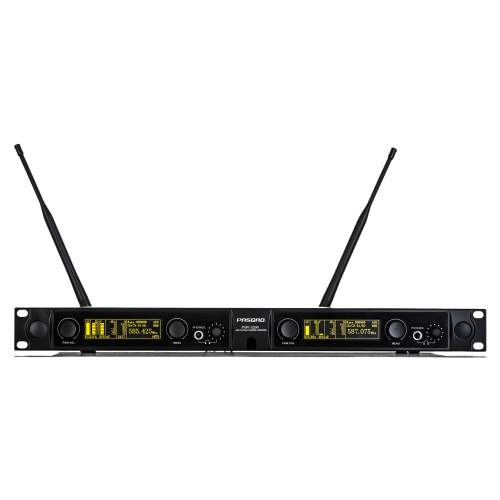

PAW-5200R

• New wireless digital pilot technology.

• Automatic tracking tuning technology ensures the best selectivity of the system at any frequency.

• OLED dot-matrix screen display, drop-down menu control.

• Double shuttle switching switch is used for quick and convenient operation.

• 6-segment transmitter battery power indicator function.

• Built-in 3-stage equalization and RF threshold control.

• PC interface control, multi-system management.

• On-line automatic scanning selection frequency.

• Independent output listening earphone function.


PAH-1300

• Modularized microphone head design of handheld transmitter for free choice and easy replacement

• LCD screen with light-green backlight indicates add group,channel,battery life,RF,AF,lock status

• Infrared data synchronization

PBT-1300

• LCD screen with light-green backlight indicates add group,channel,battery life,RF,AF,lock status

• 5 optional input gain adjustments from -9dB up to 6dB

• Infrared data synchronization

PAW-5200R

Frequency Range: 500 ~ 937.5MHz

Working Range: 100 meters

Modulation: FM

Pilot Tone: 32.768KHz

Optional Frequency: 1680

System Compatibility: 8pcs

Frequency Response: 50Hz~ 16KHz (±3dB)

Dynamic Range：> 110dB

T.H.D.: < 0.5%

S /N Ratio: > 105dB (A)

RF Sensitivity: < -95dBm

Image Rejection: > 80dB

Output Connector: (XLRx2)/(1/4-inch connector×1)/(1/4-inch PHONES JACKx1)

Audio Output Level:  (XLR:+10dBV) / (1/4-inch connector:+8dBV)/(1/4-inch PHONES JACK:100mW)

Impedance: (XLR:3KΩ) / (1/4-inch connector:3KΩ)/(1/4-inch PHONES JACK:32Ω)

Display: OLED

Power Requirements: 12V/1A DC

Operating Temperature Range: 0-50 ℃

Dimensions :160(W)*482(L)*44(H)mm

Weight :2600g


PAH-1300

Gain Adjustment Range : 0/-10/-20/-30/-40dB

Input Impedance : 5KΩ

Output Power  :10mW/30mW/50mW

Spurious Rejection:  > 50dB

Pilot Tone : 32.768KHZ

Display : LCD

Power Requirements : 1.5V×2(AA)

Battery Life : > 7H/1300mAH

Dimensions : 257(L)*54(Φ)mm

Weight:350g


PBT-1300

Gain Adjustment Range: 0/-10/-20/-30/-40dB

Input Impedance:(Mic:5KΩ)/(guitar:760KΩ)

Output Power  : 10mW/30mW/50mW

Spurious Rejection: > 50dB

Pilot Tone: 32.768KHz

Display: LCD

Power Requirements:1.5V×2(AA)

Battery Life : >7H/ 1300mAH

Dimensions: 85(H)*65(L)*23(W)mm

Weight:  90g
