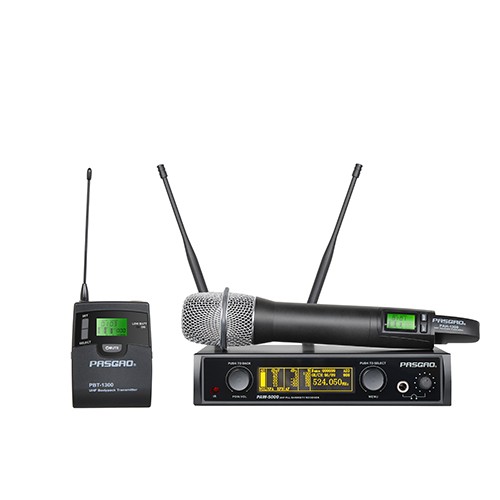

PAW-5000 Single Channel Digital Pilot Wireless Microphone System

This wireless system utilizes a newly developed technology coupled with excellent sound quality and accurately captures every detail.The system has a crystal-clear sound quality and powerful user-friendly control interface. All the data showed on OLED screen can be operated and monitored via interface.Ultra-wide 42Mhz bandwidth and automatic frequency selection ensure consistent operation with no set up hassles.Each frequency band supports up to 20 systems working simultaneously without interference.With powerful features,the system is suitable for any concert or public address environment that has demanding requirements.

  • Description
  • Specifications
  • Download

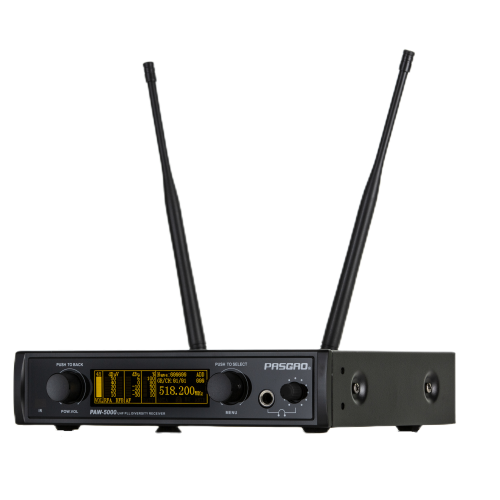

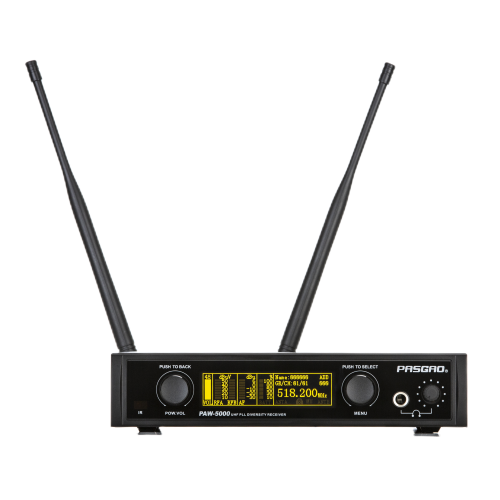

Receiver

• PC control interface for easy multi system set up

• Advanced 256x64 pixels organic LED display with enhanced drop down menu for easy setting

• Rotary encoders for each individual receiving channel                                                                        • Up to 1680 selectable frequencies

•6-segment audio meters

•6-segment RF meters

•6-segment transmitter battery fuel gauges

•3-segment equalizer

•Squelch adjustment

•Monitor headphone output with gain control

Handheld

•Modularized microphone head design of handheld transmitter for free choice and easy replacement

• LCD screen with light-green backlight indicates add group,channel,battery life,RF,AF,lock status

•3 optional RF power adjustments: 10mW/30mW/50mW

•5 optional input gain adjustments from -9dB up to 6dB

•Infrared data synchronization

RF Carrier Range: 500 ~ 937.5MHz                                                                                                  Working Range:100M

Modulation: FM

Pilot Tone: 32.768KHz

Max Channel Number: 1680

System Compatibility: 20pcs

Audio Frequency Range: 50HZ ~ 16KHz (±3db)

Dynamic Range:> 110db

System Distortion: THD < 0.5%

Signal-to-noise Ratio: > 105db (A)

RF Sensitivity: < -95dbm

Image Rejection: > 80db

Output Connector: (XLRx2)/(1/4-inch connector×1)/(1/4-inch PHONES JACKx1)

Audio Output Level:  (XLR:+10dbV) / (1/4-inch connector:+8dbV)/(1/4-inch PHONES JACK:100mW)

Impedance: (XLR:3KΩ) / (1/4-inch connector:3KΩ)/(1/4-inch PHONES JACK:32Ω)

Display: OLED

Power Requirements: 12V/1A DC

Operating Temperature Range: 0-50 ℃

Overall Dementions :160*212*44mm

 Weight :1100g
