Dual-channel true diversity wireless microphone system


The PAW-920 wireless microphone system consists of the PAW-920 receiver, the PAH-801 handheld transmitter or the PBT-801 bodypack transmitter. The system has 10 frequency groups with a total of 160 channels, and each frequency band has up to 16 channels that do not interfere with each other. The system has the functions of automatically searching for idle channels, infrared data synchronization and the like. The system offers a rock-solid performance,crystal clear sound quality,intuitive operation.An ideal choice for professional clubs,churches and other demanding venuse.


  • Description
  • Specifications
  • Download

PAW-920R

• True diversity design ensures rock-solid performance
• LCD shows all working status.
• Up to 192 selectable frequencies
• Automatic frequency selection
• Adjustable gain level
• 6-segment audio meters
• 6-segment RF meters
• 3-segment transmitter battery fuel gauges

• Squelch adjustment

• Infrared data synchronlzauon

• Rugged metal chassis

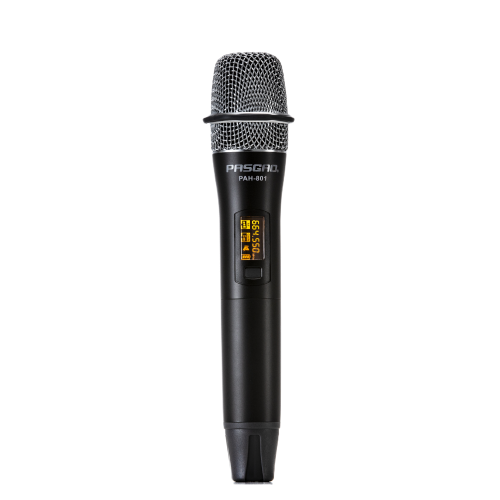

PAH-801

• Modularized microphone head design of handheld transmitter for free choice and easy replacement

• LCD screen with orange backlight indicates frequency, battery life, RF, gain, mute and Lock status

• 3 optional audio gain adjustments

• 3 optional transmit power adjustments

• Infrared data synchronization

• Rock-solid metal body design and strong rubber end structure with good anti-drop performance


PAT-801

• LCD screen with orange backlight indicates frequency, battery life, RF, gain,mute and Lock status

• 3 optional audio gain adjustments

• 3 optional transmit power adjustments

• Infrared data synchronization


PAW-920R

Frequency Range: 500 ~ 937.5MHz
Modulation : FM
Working Range: 100 meters
Pilot Tone: 32.768KHz
Optional Frequency: 192
System Compatibility: 8pcs
Frequency Response: 50Hz ~ 15KHz (±3dB)
Dynamic Range: > 105dB
T.H.D.: < 0.5%
S/N Ratio: > 102dB(A)
RF Sensitivity: < -95dBm
Image Rejection: > 60dB
Output Connectors: (XLR×1)/(1/4-inch connector×1)
Audio Output Level:  (XLR: +10dBV) / (1/4-inch connector: +8dBV)
Impedance: (XLR: 3KΩ)/(1/4-inch connector: 3KΩ)
Display: LCD×1
Power Requirements:  12V/0.5A DC
Operating Temperature Range: 0-50 ℃
Dimensions:160(W)*410(L)*44(H)mm
Weight: 1750g



PAH-801

Gain Adjustment Range: 0/3/6dB
Input Impedance: 5KΩ
Output Power：2mW/10mW/30mW
Spurious: > 50dB
Pilot Tone: 32.768KHz
Display: LCD
Power Requirements: 1.5V*2(AA)
Battery Life: >8H/1300mAH
Dimensions: 250(L)*50(Φ)mm
Weight: 360g



PBT-801

Gain Adjustment Range: 0/3/6dB
Input Impedance: 5KΩ
Output Power：2mW/10mW/30mW
Harmonic Rejection: > 50dB
Pilot Tone: 32.768KHz
Display: LCD
Power Requirements: 1.5V*2(AA)
Battery Life: >8H/1300mAH
Dimensions: 65(L)*165(H)*23(W)mm
Weight: 130g
