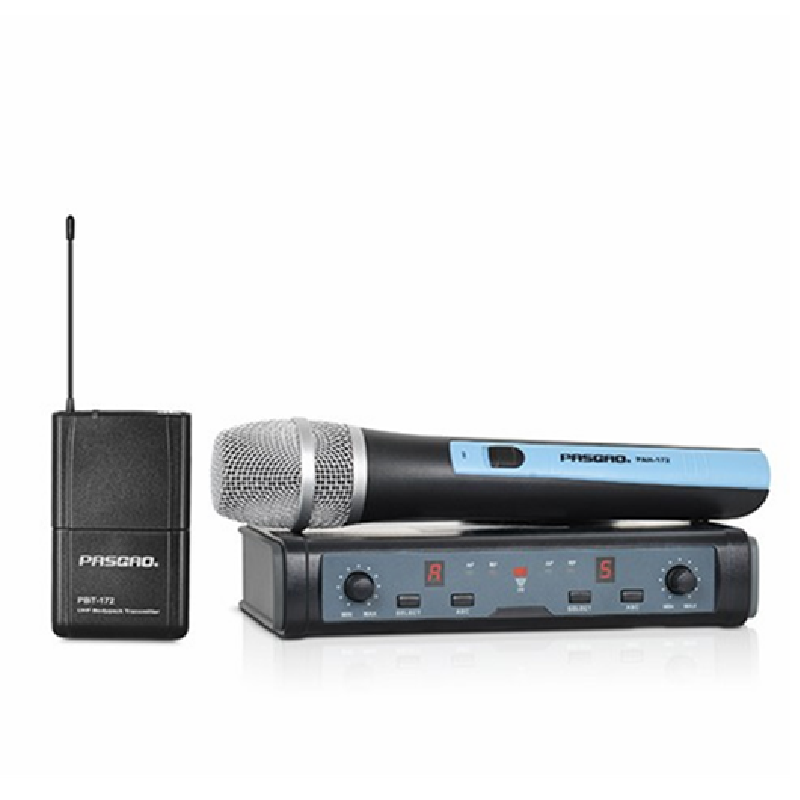

Antenna diversity dual-channel wireless microphone system


This wireless microphone system has two kinds of receivers to choose based on your application background.PAW-266 is dual-channel receiver. As for the transmitter, you can equip PAH-172 handheld transmitter, or PBT-172 bodypack transmitter. The simple buttons on receiver make it easy to operate.The pilot tone prevents it from unexpected startup noise. The transmitter battery lasts up to eight hours without any interrupting. Compared with PAW-266,PAW-267 has an additional XLR audio output in the rear panel. In this way, we can provide multiply choices for you.As many as 4 channels can be used simultaneously within the same frequency band. It has attracted customers from both overseas and domestic markets because of cost-efficient,good-performance, and multi-channel features.


  • Description
  • Specifications
  • Download

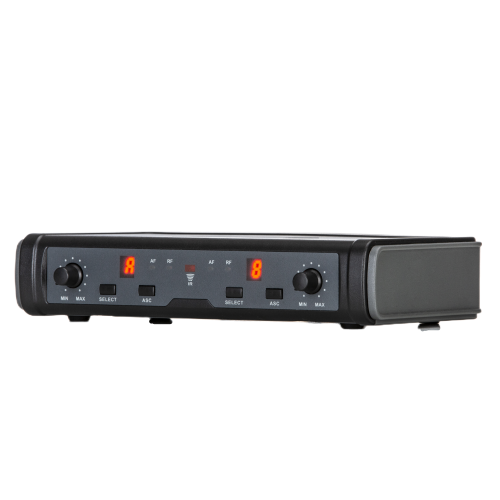

PAW-266R

• Built-in antenna design.
• Digital LED display, touch button control.
• Tone key squelch circuit to avoid interference.
• Infrared data synchronization.


PAH-172

• Cast metal structure stands high mechanical strength

• Microphone head separate design for free choice and easy replacement

• Infrared data synchronization


PBT-172

• Low battery indication

• 3 optional input gain adjustments

• Infrared data synchronization


PAW-266R

Frequency Range: 500 ~ 937.5MHz

Oscillation Pattern: PLL
Working Range: 60meters
Modulation: FM
Pilot Tone: 32.768KHz
Optional Frequency: 16
System Compatibility: 4pcs
Frequency Response: 70Hz~ 15KHz (±3dB)
Dynamic Range: > 102dB
T.H.D.: < 0.8%
S/N Ratio: > 98dB（A）
RF Sensitivity: < -92dBm
Image Rejection:> 50dB
Output Connectors: 1/4-inch connector×1
Audio Output Level: +6dBV
Output Impedance: 3KΩ
Display: LED luminescent tube
Power Requirements: 12V/0.5A  DC power adaptor
Operating Temperature Range:0-50 ℃
Dimensions:210(L)*116(W)*42(H)mm
Weight: 360g



PAH-172

Input Impedance: 5KΩ
Output Power: 20mW
Harmonic Rejection:> 50dB
Display: LED Luminescent Tube
Power Requirements: 1.5V*2(AA)
Battery Life: > 8H/1300mAH
Dimensions: 242(L)*(45)Φmm
Weight: 195g



PBT-172

Gain Adjustment Range: -10/0/10dB
Input Impedance: (Mic:5KΩ)/(Guitar: 760KΩ)
Output Power: 20mW
Harmonic Rejection: > 50dB
Display: LED Luminescent Tube
Power Requirements: 1.5V*2(AA)
Battery Life: > 8H/1300mAH
Dimensions: 105(H)*63(L)*24(W)mm
Weightt: 80g
