Antenna diversity single-channel wireless microphone system


This wireless microphone system has two kinds of receivers to choose based on your application background. PAW-260 is single channel receiver.As for the transmitter, you can equip PAH-172 handheld transmitter, or PBT-172 bodypack transmitter. The simple buttons on receiver make it easy to operate.The pilot tone prevents it from unexpected startup noise. The transmitter battery lasts up to eight hours without any interrupting. Compared with PAW-260,PAW-261 has an additional XLR audio output in the rear panel. In this way, we can provide multiply choices for you.As many as 4 channels can be used simultaneously within the same frequency band. It has attracted customers from both overseas and domestic markets because of cost-efficient, good-performance, and multi-channel features.

  • Description
  • Specifications
  • Download

PAW-260R

• Built-in antenna design

• Digital LED display, touch button control

• Tone key squelch circuit to avoid interference

• Infrared data synchronization

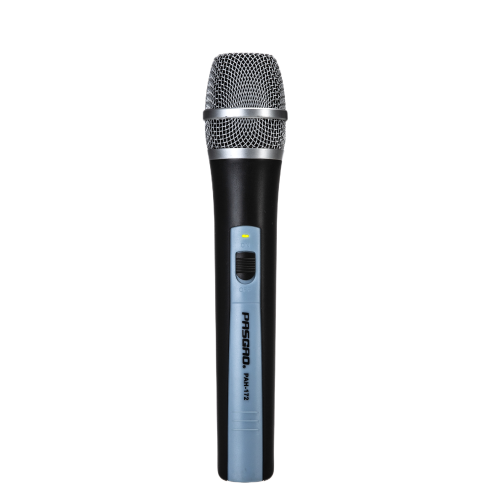

PAH-172

• Cast metal structure stands high mechanical strength

• Microphone head separate design for free choice and easy replacement

• Infrared data synchronization


PBT-172

• Low battery indication

• 3 optional input gain adjustments

• Infrared data synchronization

PAW-260R

Frequency Range: 500 ~ 937.5MHz

Oscillation Pattern: PLL

Working Range: 70meters
Optional Frequency: 64

System Compatibility: 4pcs

Frequency Response: 60Hz~ 16KHz (±3dB)

Dynamic Range：> 83dB

T.H.D.: < 0.8%

S /N Ratio: > 102dB (A)

RF Sensitivity: < -93dBm

Image Rejection: > 60dB

Output Connector: (1/4-inch connector×1)

Audio Output Level: (XLR:+5dBV) / (1/4-inch connector:+5dBV)

Output Impedance: (XLR:3KΩ) / (1/4-inch connector:3KΩ)

Display: LED

Power Requirements: 12V/0.5 DC power adapter

Operating Temperature Range: 0-50 ℃

Dimensions: 210(L)*116(W)*42(H)mm

Weight: 360g


PAH-172

Gain Adjustment Range : -10/0/10dB

Input Impedance : 2.2KΩ

Output Power : 20mW

Spurious Rejection:  > 45dB

Display : LED

Power Requirements : 1.5V×2(AA)

Battery Life : > 8H/1300mAH

Dimensions : 242(L)*45(Φ)mm

Weight: 195g


PBT-172

Gain Adjustment Range : -10/0/10dB

Input Impedance : 2.2KΩ

Output Power : 20mW

Spurious Rejection:  > 45dB

Display : LED

Power Requirements : 1.5V×2(AA)

Battery Life : > 8H/1300mAH


Dimensions : 105(H)*63(L)*24(W)mm

Weight: 80g
