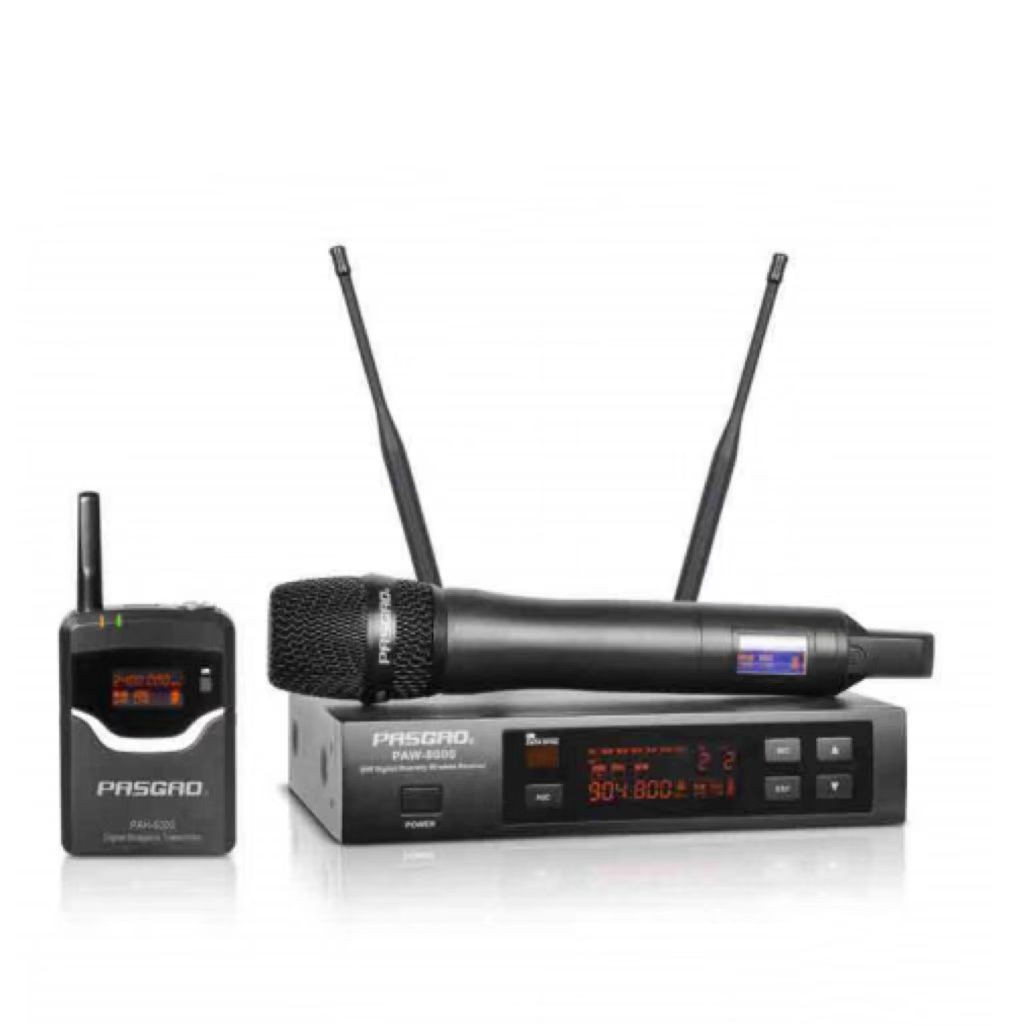

PAW-6000
PAW-6000

Professional digital wireless microphone system


PAW-6000 is a UHF superior all-digital wireless microphone system using high-speed FPGA audio compression technology, 24bit/48KH audio coding. Less than 8ms delay,with crystal-clear quality. Each band has up to 6 systems working simultaneously without interference, suitable for small and medium sized high-quality professional occasions.

  • Description
  • Specifications
  • Download

PAW-6000R

• Digital transmission and true diversity design ensure rock-solid performance

• LCD shows clearly working status

• Up to 32 selectable frequencies

• Adjustable gain level

• 6-segment audio meters

• 6-segment RF meters

• 3-segment transmitter battery fuel gauges

• Squelch adjustment

• Infrared data synchronization

• 1/2 rack design

• Rugged metal chassis


PAH-6000

• Modularized microphone head design of handheld transmitter for free choice and easy replacement

• LCD screen with orange backlight indicates frequency, battery life, RF, gain, mute and lock status

• 3 optional audio gain adjustments from -9dB up to 6dB

• 3 optional transmit power adjustments

• Infrared data synchronization

• Rock-solid metal body design for anti-drop


PBT-6000

• CD screen with orange backlight indicates frequency, battery life, RF, gain level,mute and lock status

• 3 optional audio gain adjustments from -9dB up to 6dB

• 3 optional transmit power adjustments

• Double input circuit design for microphone and guitar

• Infrared data synchronization


PAW-6000R

Frequency Range: 902~928MHz

Digital Modulation: DFSK

Working Range: 50meters
Optional Frequency: 32

System Compatibility: 6pcs

Frequency Response: 50Hz~ 18KHz (±3dB)

Dynamic Range：> 108dB

T.H.D.: < 0.2%

S /N Ratio: > 105dB (A)

RF Sensitivity: < -95dBm

Image Rejection: > 60dB

Output Connector: (1/4-inch connector×1)

Audio Output Level: (XLR:+10dBV) / (1/4-inch connector:+8dBV)

Output Impedance: (XLR:3KΩ) / (1/4-inch connector:3KΩ)

Display: LCDX1

Power Requirements: 12V/0.5

Operating Temperature Range: 0-50 ℃

Dimensions: 212(L)*160(W)*44(H)mm

Weight: 840g


PAH-6000

Gain Adjustment Range : 0/3/6dB

Input Impedance : 5KΩ

Output Power : 2mW/10mW/30mW

Spurious Rejection:  > 50dB

Display : LCD

Power Requirements : 1.5V×2(AA)

Battery Life : > 8H/1300mAH

Dimensions : 256(L)*50(Φ)mm

Weight: 360g


PBT-6000

Gain Adjustment Range : 0/3/6dB

Input Impedance : (Mic:5KΩ)/(Guitar:760KΩ)

Output Power : 2mW/10mW/30mW

Spurious Rejection:  > 50dB

Display : LCD

Power Requirements : 1.5V×2(AA)

Battery Life : > 8H/1300mAH

Dimensions : 163(H)*65(L)*24(W)mm

Weight: 130g
