PAW-790
PAW-790

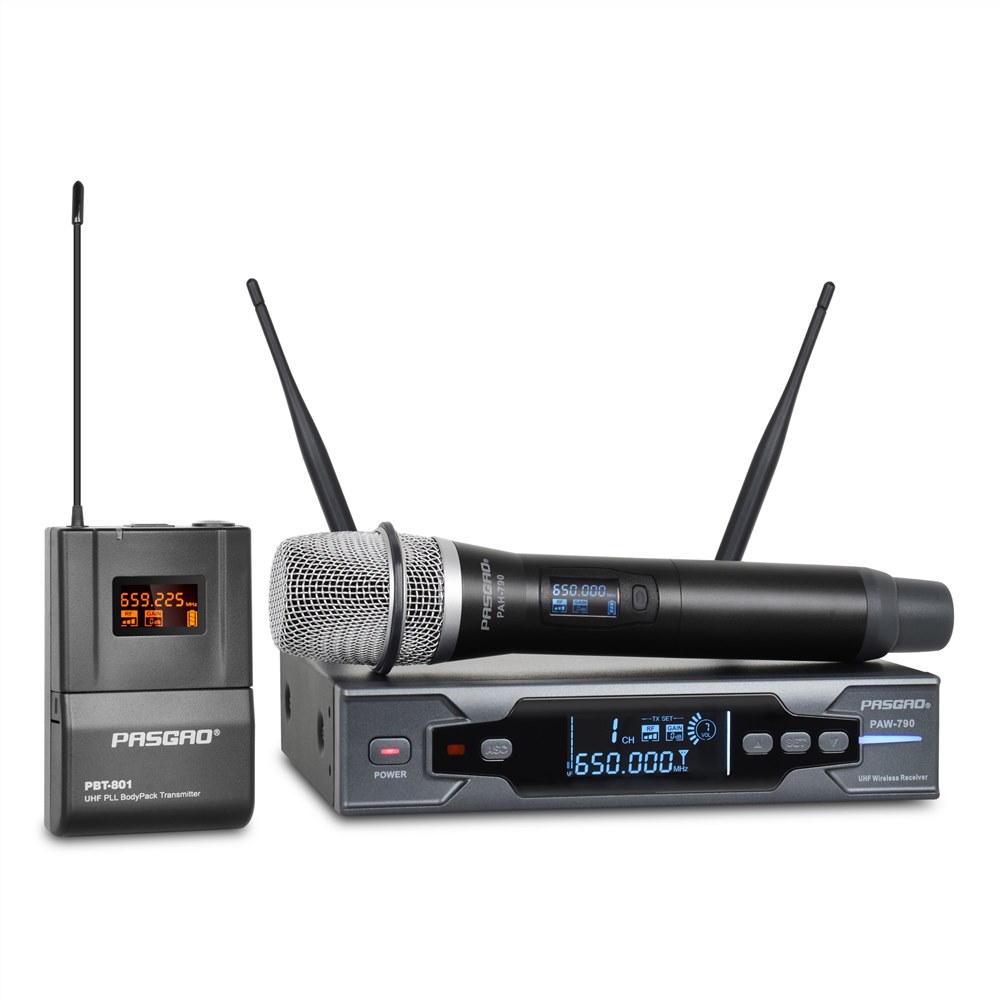

True diversity wireless microphone system


With the meticulous engineering, state of art technology and impressive audio capabilities that are built into every Pasgao wireless system, the PAW-790/799 series ensures easy operation and the most dependable wireless performance available.PAW-790 is single-channel receiver with 64 non-interfering selectable frequencies, while PAW-799 is dual-channel receiver with 128 non-interfering selectable frequencies. With a selection of PAH-790 handheld transmitter or PBT-801 bodypack transmitter, infrared data synchronization, advanced features and flawless operation, the PAW-790/799 series is the ideal high-performance wireless system solution for all kinds of home karaoke use,churches, small conference rooms and other venues.

  • Description
  • Specifications
  • Download

PAW-790R

• LCD screen shows clear working status

• Infrared data synchronization

• Transmitter battery life indication


PAH-790

• LCD screen with backlight indicates add channel, battery life, RF, AF, locked status

• 5 adjustable input sensitivity

• Adjustable receiving gain control circuit

• Adjustable RF power 10mW for different environment

• Infrared data synchronization

• Embedded power switch design prevents a wrong operation


PBT-801

• LCD screen show group, channel, battery volume and locked status

• 3 optional input gain adjustment

• Infrared data synchronization


PAW-799R

Frequency Range: 500 ~ 937.5MHz

Oscillation Pattem : PLL
Working Range: 70 meters
Modulation: pi/4 DQPSK
Pilot Tone: digital pilot tone

Optional Frequency: 64
System Compatibility: 3pcs
Frequency Response : 60Hz ~ 16KHz (±3dB)
Dynamic Range: > 83dB
T.H.D.: < 1%
S/N Ratio: > 85dB(A)
RF Sensitivity: < -95dBm
Image Rejection: > 60dB
Output Connectors: (XLR×1)/(1/4-inch connector×1)
Audio Output Level:  (XLR: +5dBV) / (1/4-inch connector: +5dBV)
Output Impedance: (XLR: 3KΩ)/(1/4-inch connector: 3KΩ)
Display: LCD×1
Power Requirements:  12V/0.5A DC power supply adapter
Operating Temperature Range: 0-50 ℃
Dimensions:170(W)*410(L)*44(H)mm
Weight: 1170g



PAH-790

Gain Adjustment Range: 0/3/6dB
Input Impedance: 2.2KΩ
Output Power:10mW
Spurious Rejection : > 50dB
Pilot Tone: digital pilot ton

Display: LCD
Power Requirements: 1.5V*2(AA)
Battery Life: >8H/1300mAH
Dimensions: 245(L)*54(Φ)mm
Weight: 250g



PBT-801

Gain Adjustment Range: 0/3/6dB
Input Impedance: 5KΩ
Output Power:2mW/10mW/30mW
Harmonic Rejection: > 50dB
Pilot Tone: 32.768KHz
Display: LCD
Power Requirements: 1.5V*2(AA)
Battery Life: >8H/1300mAH
Dimensions: 65(L)*165(H)*23(W)mm
Weight: 130g
