Single channel true diversity wireless microphone


A new series of PASGAO,full metal housing with IMD design, equipped with OLED make it stand out from other systems. PC control function, high stability and crystal clear sound quality make it a perfect choice for live performance. P1 is single channel system, while P1R2 is a dual-channel system. Each can equipped with P1HT and P1BT transmitter.

  • Description
  • Specifications
  • Download

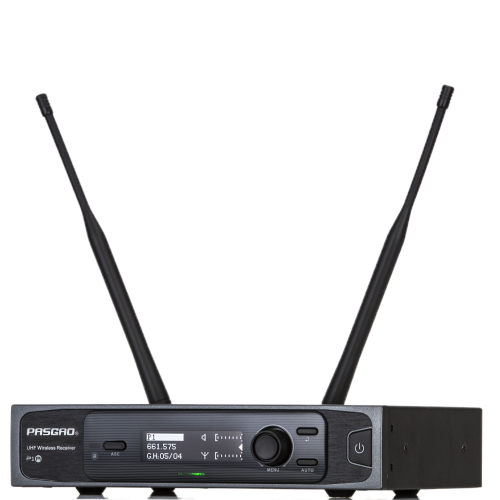

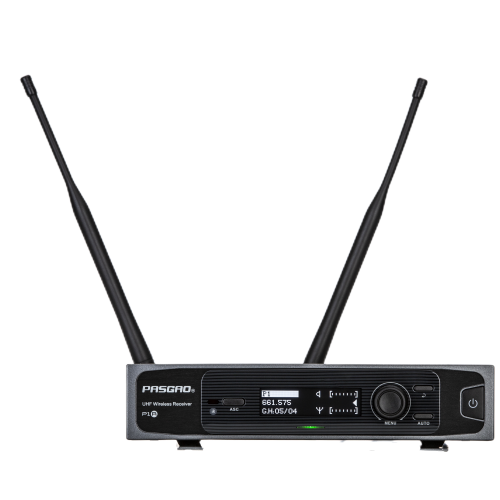

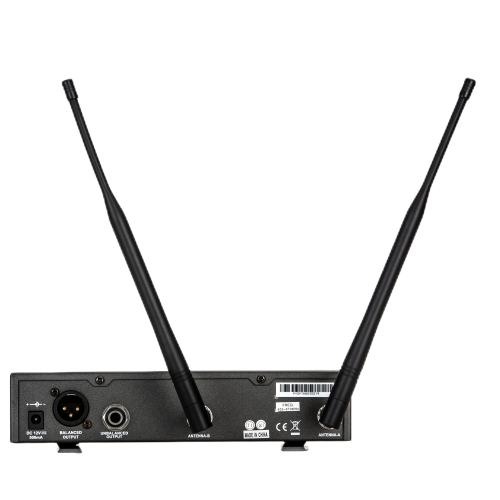

P1R

• PC interface for easy setup and multi system control，single chanel up to 16， dual chanel up to 8

• True diversity technique ensures very stable receptions

• 42MHz Frequency bandwidth with up to 1680 optional frequencies, free to switch to any available ones

• Auto scanning function, select the available frequency easily

• OLED screen gives a clear view of all working status from all angles

• Two way shuttle knob offers a very easy menu operation


P1HT

• Metal housing of the handheld, makes it stronger, anti-drop, suitable for carrying around and frequently-used

• OLED screen gives a clear view of all working status from all angles

• Mute function helps easy operation

• 3 optional input gain adjustments from -27dB to 0dB

• Infrared data synchronization

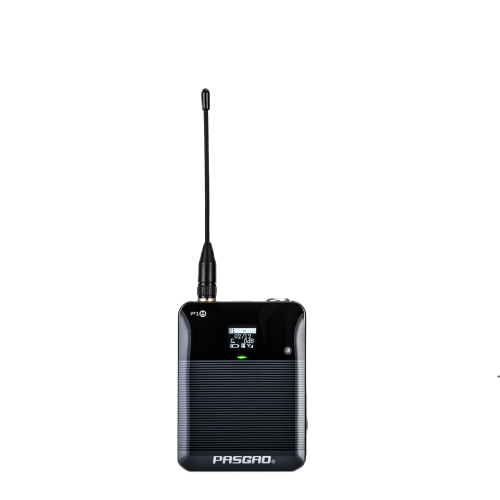

P1BT

• OLED screen gives a clear view of all working status from all angles

• Mute function helps easy operation

• 3 optional input gain adjustments from -27dB to 0dB

• Infrared data synchronization

P1R

Working Range: 100meters

Pilot Tone: 32.768KHz

System Compatibility: 8pcs

Dynamic Range:> 110dB

S/N Ratio: > 105dB(A)

Mirror Suppression: > 75dB

Audio Output Level:  (XLR:+10dBV) / (1/4-inch connector:+8dBV)

Display : OLED

Operating Temperature Range: 0-50 ℃



P1HT

Gain Adjustable Range: -27~0dB
Input Impedance:Mic:5KΩ
Output Power: 2mW/10mW/30mW
Spurious: > 50dB
Display: OLED
Power Requirements: 1.5V*2(AA)
Battery Life: >8H/1300mAh



P1BT

Gain Adjustable Range: -27~0dB
Input Impedance:Mic:5KΩ/Guitar:760KΩ
Output Power: 2mW/10mW/30mW
Spurious: > 50dB
Display: OLED
Power Requirements: 1.5V*2(AA)
Battery Life: >8H/1300mAh
