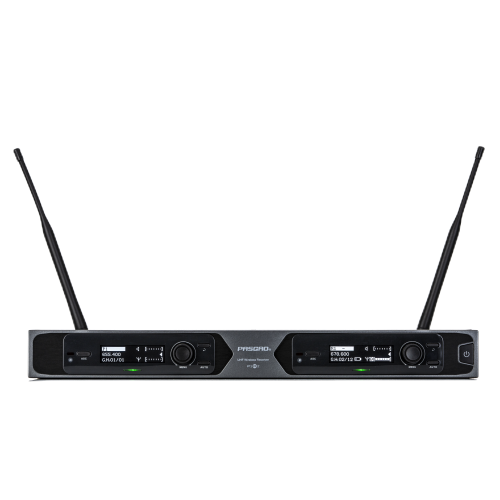

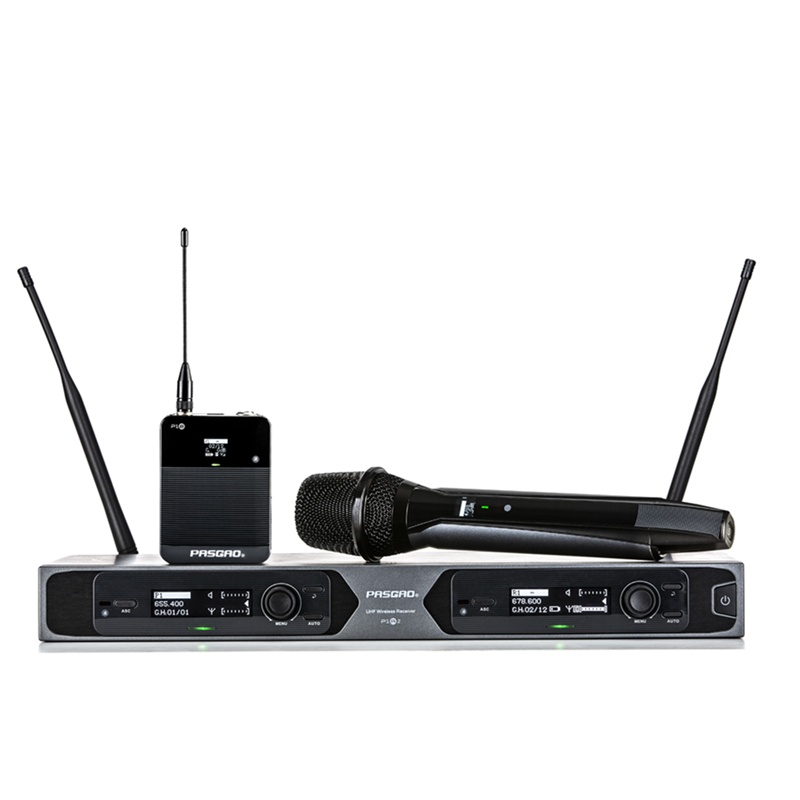

Dual-channel true diversity wireless microphone system



P1 series is PASGAO's new wireless microphone  products, its unique design, the industrial fashion and the sense of science and technology to play thoroughly, What's more,the true diversity antenna design guarantees extremely high stability and clear sound quality.Two-way shuttle knob which bring simple operation. In short,the perfect combination of appearance and strength makes it is the best choice for live performance.


  • Description
  • Specifications
  • Download

P1R

• PC interface for easy setup and multi system control，single chanel up to 16， dual chanel up to 8

• True diversity technique ensures very stable receptions

• 42MHz Frequency bandwidth with up to 1680 optional frequencies, free to switch to any available ones

• Auto scanning function, select the available frequency easily

• OLED screen gives a clear view of all working status from all angles

• Two way shuttle knob offers a very easy menu operation


P1HT

• Metal housing of the handheld, makes it stronger, anti-drop, suitable for carrying around and frequently-used

• OLED screen gives a clear view of all working status from all angles

• Mute function helps easy operation

• 3 optional input gain adjustments from -27dB to 0dB

• Infrared data synchronization


P1BT

• OLED screen gives a clear view of all working status from all angles

• Mute function helps easy operation

• 3 optional input gain adjustments from -27dB to 0dB

• Infrared data synchronization


P1R2

Frequency Range: 500~ 937.5 MHz

Working Range:60meters
Modulation: FM
Pilot Tone: 32.768KHz
Optional Frequency: 960
System Compatibility: 4pcs
Frequency Response: 70Hz~ 15KHz (±3dB)
Dynamic Range：> 110dB
T.H.D.: < 0.5%
S/N Ratio: > 105dB (A)
RF Sensitivity: < -98dBm
Image Rejection: > 75dB
Output Connector: (XLRx1)/(1/4-inch connector×1)
Audio Output Level:  (XLR:+10dBV) / (1/4-inch connector:+8dBV)
Impedance: (XLR:3KΩ) / (1/4-inch connector:3KΩ)
Display: OLED
Power Requirements: 12V/0.5A
Operating Temperature Range: 0-50 ℃



P1HT

Gain Adjustable Range: -27~0dB
Input Impedance:Mic:5KΩ
Output Power: 2mW/10mW/30mW
Spurious: > 50dB
Display: OLED
Power Requirements: 1.5V*2(AA)
Battery Life: >8H/1300mAh



P1BT

Gain Adjustable Range: -27~0dB
Input Impedance:Mic:5KΩ/Guitar:760KΩ
Output Power: 2mW/10mW/30mW
Spurious: > 50dB
Display: OLED
Power Requirements: 1.5V*2(AA)
Battery Life: >8H/1300mAh
